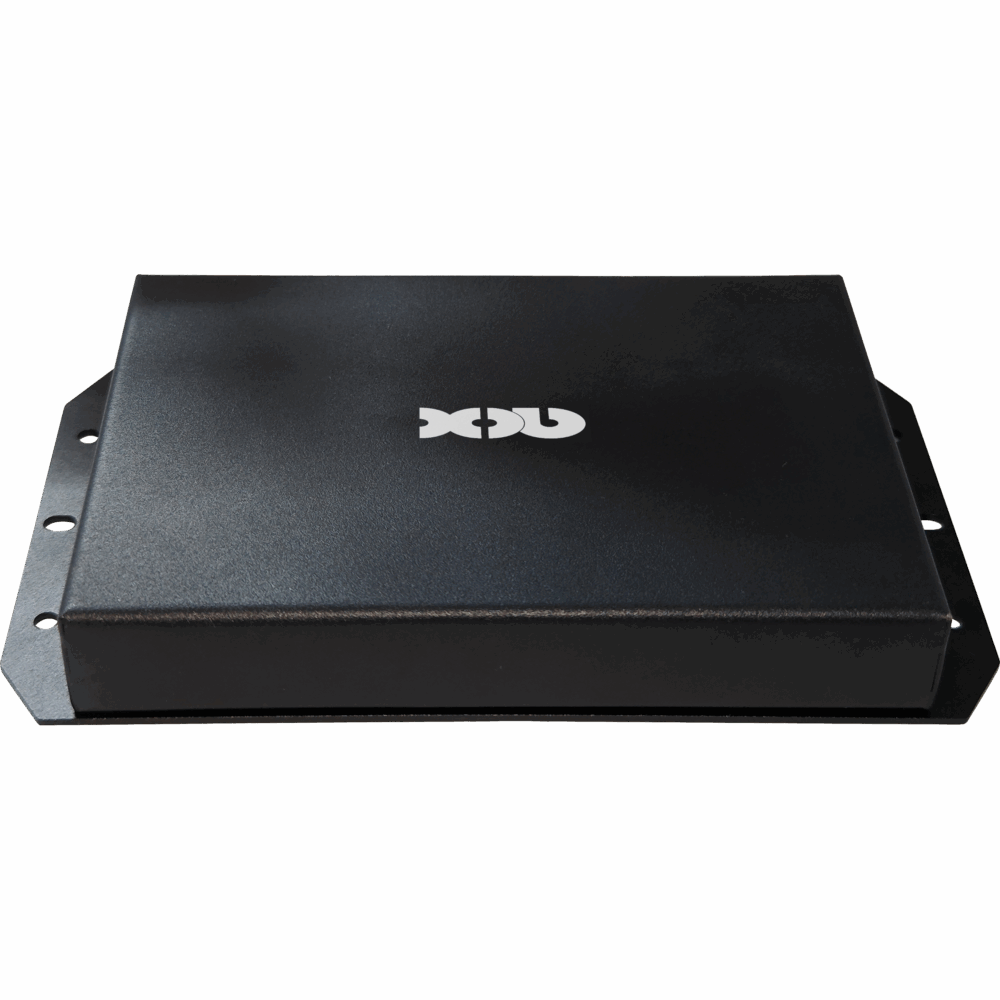

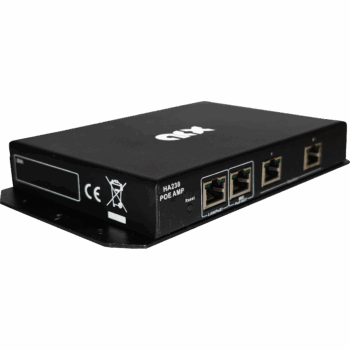

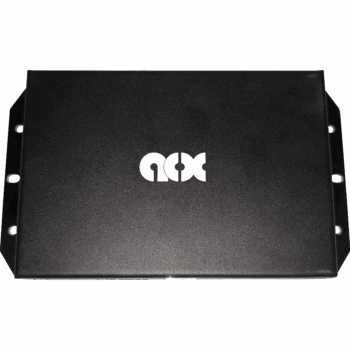

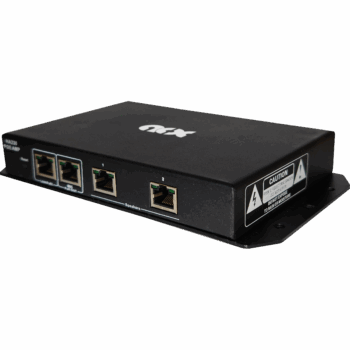

HA230

Simple, discrete, and effective. The HA series is an series of PoE++ / DSP / Dante + Amplifiers that are designed to allow users to setup multiple speakers in up to 4 speakers in one, or multiple rooms at a time.
The HA series are compact, weighing only around 1.5lbs with Dual Channel 30w, or Four Channel output while supporting Dnate/AES67 Network Audio. Each channel can control audio, mute, and input matrix.
Paired with ACXConsole the HA series lets users monitor the status of the speakers and connection ports to quickly identify any issues and make setup a breeze, all while barely taking up any space in a room as if it was never there.

Share This Items :

The HA series is a PoE++ Power amplifier with Dante/AES67. The HA230 and HA415 has 2x30 and 4x15w output respectively. The device has a High Pass Filter that can be configurated by the user, 8GEQ, Limiter, Phase, LED Level display, and 1khZ of pink noise. The system has an auto/manual detection within 5 seconds and a 4ohms / 8ohm/s loading auto detect.

Being a PoE amplifier means the device only needs to use CAT-X, drastically simplifying the setup for users in settings such as schools, businesses, government institutions, and other indoor or small locations. Combined with its Dante functionality and being AES67 compatible makes it ideal for technicians as they only need a single ethernet cable to power an entire audio system.

The tiny size of 25x191.192mm means it is small enough to be fitted onto CLS series of speakers, and being cooled through convection makes it also completely silent.

Electrical
Power-over-Ethernet			PoE++ to IEEE 802.3bt, Class 4
Power Consumption			90W maximum
Power Output			Two (2) channel, 30W/channel maximum
Operating Temperature			32-104⁰F (0-40⁰C)
Cooling			Convection cooling, no fan
Humidity			0-95% relative humidity, non-condensing
Connectivity			LAN: (1) RJ45, PoE++ powered; Speaker(s): (2) RJ45, amplified audio out
Audio Networking			Dante™ with AES67-compliance, Two (2) output channels
Amplifier Type			Class D
Amplifier Power			Single channel:30W; Dual channel: 30W;
Frequency Response (20Hz-20kHz)			+/- 1dB
Sample Rate			48kHz
Dynamic Range (20Hz-20kHz BW)			>90dB
THD+N (20Hz to 22kHz)			<0.3%
Intermodulation Distortion (SMPTE)			<0.3%
Crosstalk (Channel-to-Channel at 1kHz)			<-90dB
Controls, Service & Indicators			Reset: Momentary tactile button; Status: RGB LED indicator; LAN (PoE++)/LAN RJ45 indicators: Green (left) - power Status, Green (right) - Blink on data activity;
Mechanical
Finish			Matt black with ruggedized coating; labels in white
Weight			1.5kg / 0.7lbs
Dimensions (HxWxD)			1.12″ x 7.83″ x 4.49″ (28.5 x 199 x 114 mm)
Mounting			Mounts onto any flat surface

Electrical
Power-over-Ethernet			PoE++ to IEEE 802.3bt, Class 4
Power Consumption			90W maximum
Power Output			Two (2) channel, 30W/channel maximum
Operating Temperature			32-104⁰F (0-40⁰C)
Cooling			Convection cooling, no fan
Humidity			0-95% relative humidity, non-condensing
Connectivity			LAN: (1) RJ45, PoE++ powered; Speaker(s): (2) RJ45, amplified audio out
Audio Networking			Dante™ with AES67-compliance, Two (2) output channels
Amplifier Type			Class D
Amplifier Power			Single channel:30W; Dual channel: 30W;
Frequency Response (20Hz-20kHz)			+/- 1dB
Sample Rate			48kHz
Dynamic Range (20Hz-20kHz BW)			>90dB
THD+N (20Hz to 22kHz)			<0.3%
Intermodulation Distortion (SMPTE)			<0.3%
Crosstalk (Channel-to-Channel at 1kHz)			<-90dB
Controls, Service & Indicators			Reset: Momentary tactile button; Status: RGB LED indicator; LAN (PoE++)/LAN RJ45 indicators: Green (left) - power Status, Green (right) - Blink on data activity;
Mechanical
Finish			Matt black with ruggedized coating; labels in white
Weight			1.5kg / 0.7lbs
Dimensions (HxWxD)			1.12″ x 7.83″ x 4.49″ (28.5 x 199 x 114 mm)
Mounting			Mounts onto any flat surface
