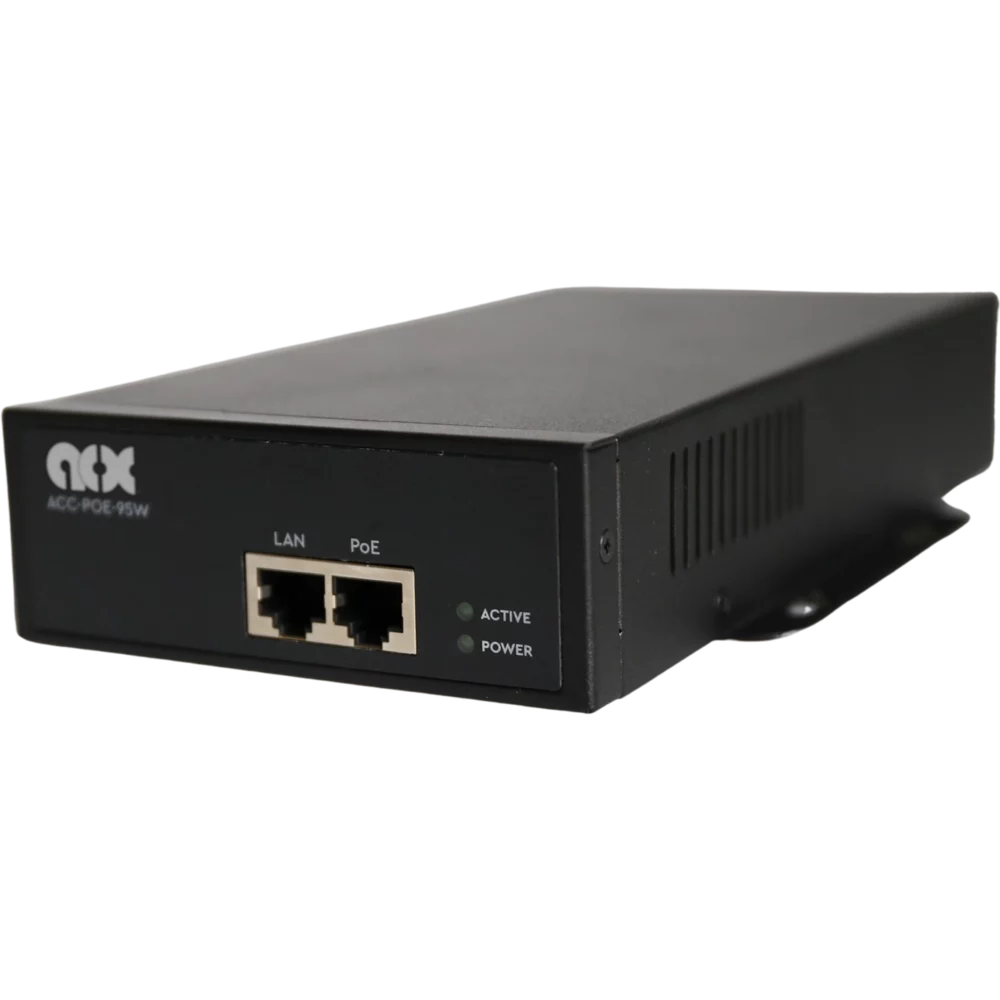

PoE95W

The PoE95W is a single-port PoE injector that's able to withstand a large temperature range, being able to work within temperatures of -40°c to +65°c and 100-240VAC input.
Its built-in detection chip lets it detect and classify PD before powering, and will not provide power until a standard compliant PD is detected. The effective distance of this device is over 100m over Cat5e/Cat6 cables.

Share This Items :

The PoE95W is a single port injector that supports a wide temperature range.

Providing 55Vdc, 1.75A power for remote PDs over full 4 pairs with 6KV (10/700us) surge protection, it supports both 10/100 Base-T and Gigabit devices. Works with 95W PoE PDs such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks, and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at, IEEE802.3bt compliant terminals.

The device remains operation at 100-240VAC output in -40°c to +65°c environments, and is the ideal solution for providing power in complex power situations.

Specifications
Standards	- IEEE802.3 10Base-T Ethernet - IEEE802.3u 100Base-TxFast Ethernet - IEEE802.3ab 1000Base-T Gigabit Ethernet - Full compliant with lEEE802.3af/at/bt - RoHS Compliance - WEEE Compliance
Inputs and Outputs
Input	100-240Vac 2.0A 50/60HZ
Output	55Vdc 1750mA
Power Pins	4/5(+),7/18(-) and 3/6(+),1/2(-)
Data Speed	10/100/100Mbps
Working Environment
Operating Temps	-40°c to 65°C
Operating Humidity	20% - 80% non-condensation
Storage Temps	-40°c to 85°C
Storage Humidity	100% - 90% non-condensation
Operating Altitude	up to 5000 meters
AC surge Protection
Line-Earth 1.2/50us (8/20us)	2KV
Line-Line1.2/50us (8/20us)	1KV
PoE Surge Protection
Protected lines	1,2,3,4,5,6,7,8
Common Mode Surge Protection (10/700us)	6KV
Differential Mode Surge Protection (10/700us)	1.5KV
Size	214mm x 134mm x 41mm
Weight	1070g
IP Rating	IP20

Specifications
Standards	- IEEE802.3 10Base-T Ethernet - IEEE802.3u 100Base-TxFast Ethernet - IEEE802.3ab 1000Base-T Gigabit Ethernet - Full compliant with lEEE802.3af/at/bt - RoHS Compliance - WEEE Compliance
Inputs and Outputs
Input	100-240Vac 2.0A 50/60HZ
Output	55Vdc 1750mA
Power Pins	4/5(+),7/18(-) and 3/6(+),1/2(-)
Data Speed	10/100/100Mbps
Working Environment
Operating Temps	-40°c to 65°C
Operating Humidity	20% - 80% non-condensation
Storage Temps	-40°c to 85°C
Storage Humidity	100% - 90% non-condensation
Operating Altitude	up to 5000 meters
AC surge Protection
Line-Earth 1.2/50us (8/20us)	2KV
Line-Line1.2/50us (8/20us)	1KV
PoE Surge Protection
Protected lines	1,2,3,4,5,6,7,8
Common Mode Surge Protection (10/700us)	6KV
Differential Mode Surge Protection (10/700us)	1.5KV
Size	214mm x 134mm x 41mm
Weight	1070g
IP Rating	IP20
