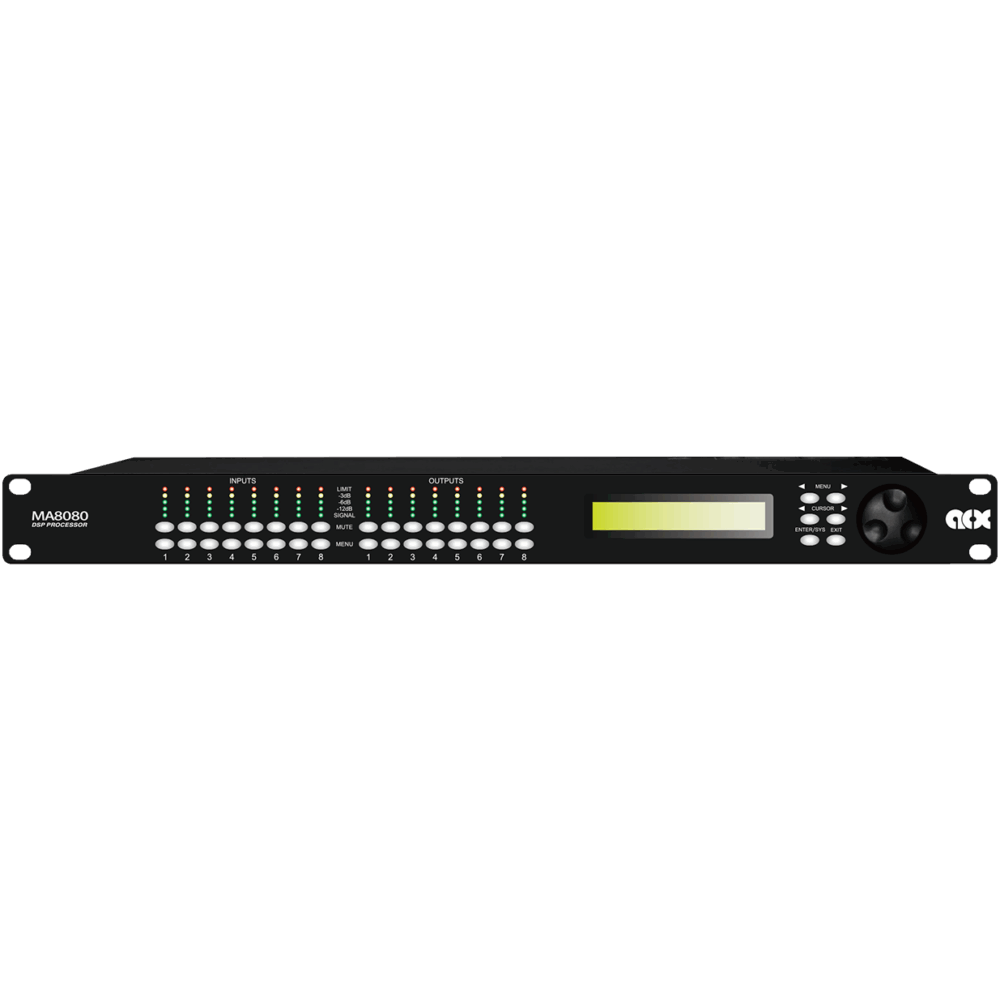

MA_Series

The MA/RX series are the most advanced DSP's ACX has to offer. Featuring high-performance 24-bit converters, DSP processed algorithims such as FIR filters, IIR filters, and many more benefits, allowing for the most comprehensive suite of functions for maximum flexibility and capabilities.
Available as the MA4080 and MA8080

Share This Items :

The MA is a 96kHz 40 bit floating point DSP engine, high-performance 24 bit converters ， and DSP processed algorithms such as FIR filters, IIR filters, 650ms delay, 32 segment GEQ, and 8 segment PEQ, which can be used for on-site sound, leasing, small installations, and vertical array devices. The device also has a standard IU rack, and 4x8 XLR input/output interface, or 8x8 XLR input/output interface.

MA is connected through USB, Ethernet and RS485 ports for configuration, control, and monitoring, while many processing module functions are operated through ACX Console and ACX Touch mobile apps. Users can also pair the devices with the Xpanel series of wall-touch panels for remote control around a venue.

Input impedance	>10kΩ
Output impedance	50Ω
Maximum level	+20dBu
Input mode	Balanced line input
Output mode	Balanced line output
Frequent response	+/- 0.1dB (20 to 30kHz)
Dynamic range	115dB type (unweighted)
Common mode rejection ratio	>60dB @ 1kHz
Crosstalk	-80dB @ 1kHz
Distortion	0.002% (1kHz @ +4dBu)
Processor	40-bit Floating Point
Sampling Rate	96kHz
Analog converter	High-Performance 24-bit
Propagation delay	1.5ms
Ports	XLR, USB, Ethernet, lEC Power Supply
Power supply	90-240 VAC(50-60Hz)
Measurement	19”x1.75”x9.3”(483x44.4x236.4mm)
Size	1U Rack

Input impedance	>10kΩ
Output impedance	50Ω
Maximum level	+20dBu
Input mode	Balanced line input
Output mode	Balanced line output
Frequent response	+/- 0.1dB (20 to 30kHz)
Dynamic range	115dB type (unweighted)
Common mode rejection ratio	>60dB @ 1kHz
Crosstalk	-80dB @ 1kHz
Distortion	0.002% (1kHz @ +4dBu)
Processor	40-bit Floating Point
Sampling Rate	96kHz
Analog converter	High-Performance 24-bit
Propagation delay	1.5ms
Ports	XLR, USB, Ethernet, lEC Power Supply
Power supply	90-240 VAC(50-60Hz)
Measurement	19”x1.75”x9.3”(483x44.4x236.4mm)
Size	1U Rack
