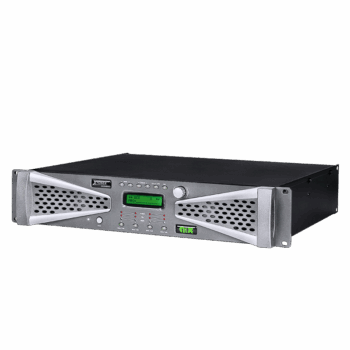

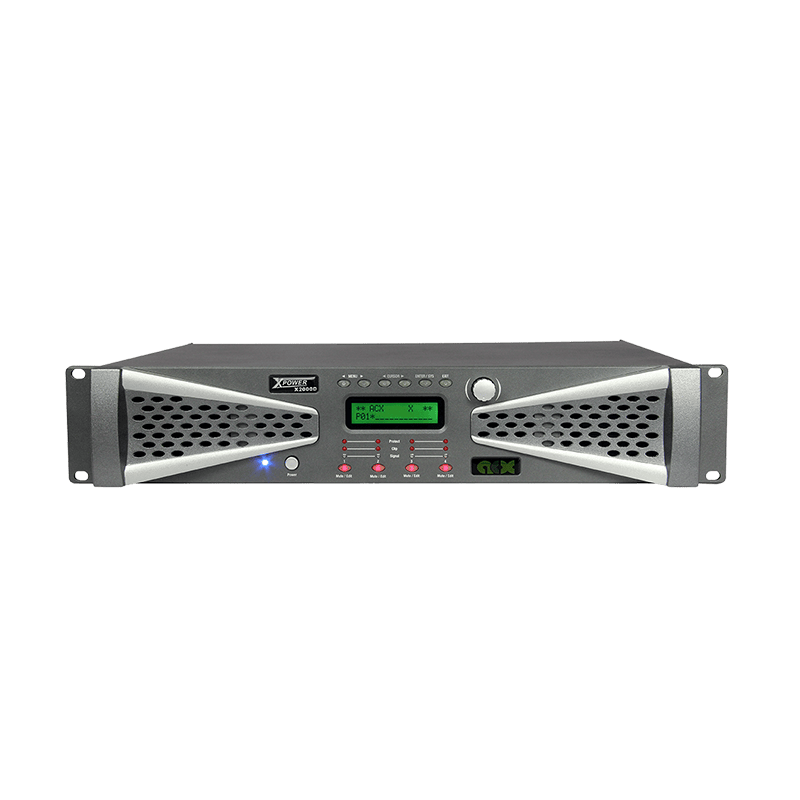

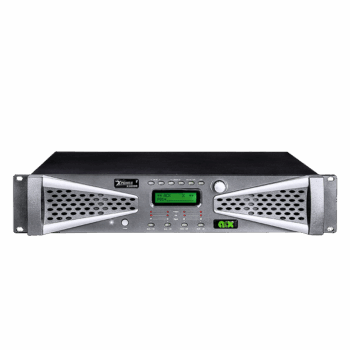

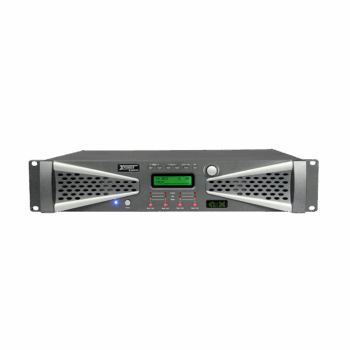

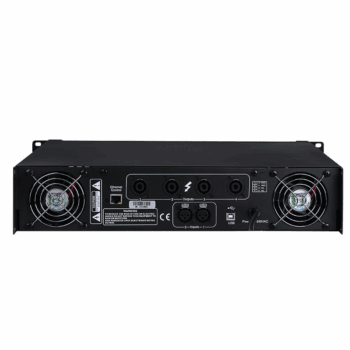

XPower DSP Series

Multi-zone amplifiers do not get simpler to install than with the D-Series.

Rocking multiple channel solutions from 8 to 16 channels, these are interacted with using the Phoenix interface, allowing for easy installation and modification, and the perfect solution for multi-zone audio.

Available as the D8120, and the D1660.

Share This Items :

The D series of professional amplifiers offers multiple channels, each with simple installation and a perfect solution for multi-zones.

The D8120 is professional amplifier holding 8-channels Class D switching power supply, impedance of 4 Ohm, power in 120w and 60w.

TheD1660 is a 16-channel amplifier, power of 60w 4 Ohm impedance. Practically speaking, they are simple and easy to install, and can offer a perfect solution for multi-zone.

All input and output ports use the Phoenix interface to balance the input signal. Each channel has an independent volume knob and a switch which can select stereo / bridge to avoid signal interference when assigning input signals. Both also come with a built-in secure system, when the protection light glows, the device enters protection mode to preventing short circuiting overheating, overload and limiting the signal output.

Available as the 8 analog in 8 speaker out D8120, and the 16 analog and 16 speaker out D1660.

MODEL	X2000D/X4000D
Number of Channels	2 analog input,4 speaker output
Input Port	3-pin XLR
Input Impedance	>10KQ
Maximum Level	+20dBu
Freq Response	+/-0.1dB (20 to 30kHz)
Dynamic Range	115dB typical (unweighted)
CMMR	>40dB (20 to 10kHz)
Crosstalk	<-100dB
Distortion	0.002%(1kHz @+4dBu)
Processor (DSP)	40-Bit Floating Point
Sample Rate	96kHz
Analog Converters	Super Performance 24-bit
Propagation Delay	1.5ms
Gain	-40 to +15dB in 0.25dB steps
Polarity	+/-
Delay	Up to 40ms per l/O
Variable EQ	8 per I/O
Type	Parametric,Hi-shelf,Lo-shelf,Phase(1st and 2nd order)
EQ Gain	-30 to +15dB in 0.25dB steps
EQ Bandwidth	0.02 to 2.50 Oct(Q=0.5 to 72)
Crossover Type	Butterworth,Linkwitz Riley,Bessel
Slope	6 to 48dB/Octave
Compressor/Limiter	1 Compressor per input channel,1 Limiter per output channel
Threshold	-20 to +20dBu
Attack	0.3 to 100ms
Release	2 to 32x the attack time
Ratio	1:1 to 1:40 (Compressor Only)
Number of Presets	30
Delay Units	ms,ft,m
Frequency Modes	36 steps/Oct,1Hz Resolution
Security locks	Password
Channel names	6 Characters
Display	2 x16 Characters Backlit LCD
Buttons	4 Mute/Channel Controls,6 System Menu Controls,1 Dial Encoder
USB	Type B
Ethernet	Standard CAT-5
Dimensions	X2000D/X2000D4/X4000D/X4000D4:483x388x88mm X1D/X1D4:483x469x88mm
Weight	6.5kg17.5kg/12.4kg	6.6kg/7.6kg/12.6kg

MODEL	X2000D/X4000D
Number of Channels	2 analog input,4 speaker output
Input Port	3-pin XLR
Input Impedance	>10KQ
Maximum Level	+20dBu
Freq Response	+/-0.1dB (20 to 30kHz)
Dynamic Range	115dB typical (unweighted)
CMMR	>40dB (20 to 10kHz)
Crosstalk	<-100dB
Distortion	0.002%(1kHz @+4dBu)
Processor (DSP)	40-Bit Floating Point
Sample Rate	96kHz
Analog Converters	Super Performance 24-bit
Propagation Delay	1.5ms
Gain	-40 to +15dB in 0.25dB steps
Polarity	+/-
Delay	Up to 40ms per l/O
Variable EQ	8 per I/O
Type	Parametric,Hi-shelf,Lo-shelf,Phase(1st and 2nd order)
EQ Gain	-30 to +15dB in 0.25dB steps
EQ Bandwidth	0.02 to 2.50 Oct(Q=0.5 to 72)
Crossover Type	Butterworth,Linkwitz Riley,Bessel
Slope	6 to 48dB/Octave
Compressor/Limiter	1 Compressor per input channel,1 Limiter per output channel
Threshold	-20 to +20dBu
Attack	0.3 to 100ms
Release	2 to 32x the attack time
Ratio	1:1 to 1:40 (Compressor Only)
Number of Presets	30
Delay Units	ms,ft,m
Frequency Modes	36 steps/Oct,1Hz Resolution
Security locks	Password
Channel names	6 Characters
Display	2 x16 Characters Backlit LCD
Buttons	4 Mute/Channel Controls,6 System Menu Controls,1 Dial Encoder
USB	Type B
Ethernet	Standard CAT-5
Dimensions	X2000D/X2000D4/X4000D/X4000D4:483x388x88mm X1D/X1D4:483x469x88mm
Weight	6.5kg17.5kg/12.4kg	6.6kg/7.6kg/12.6kg
