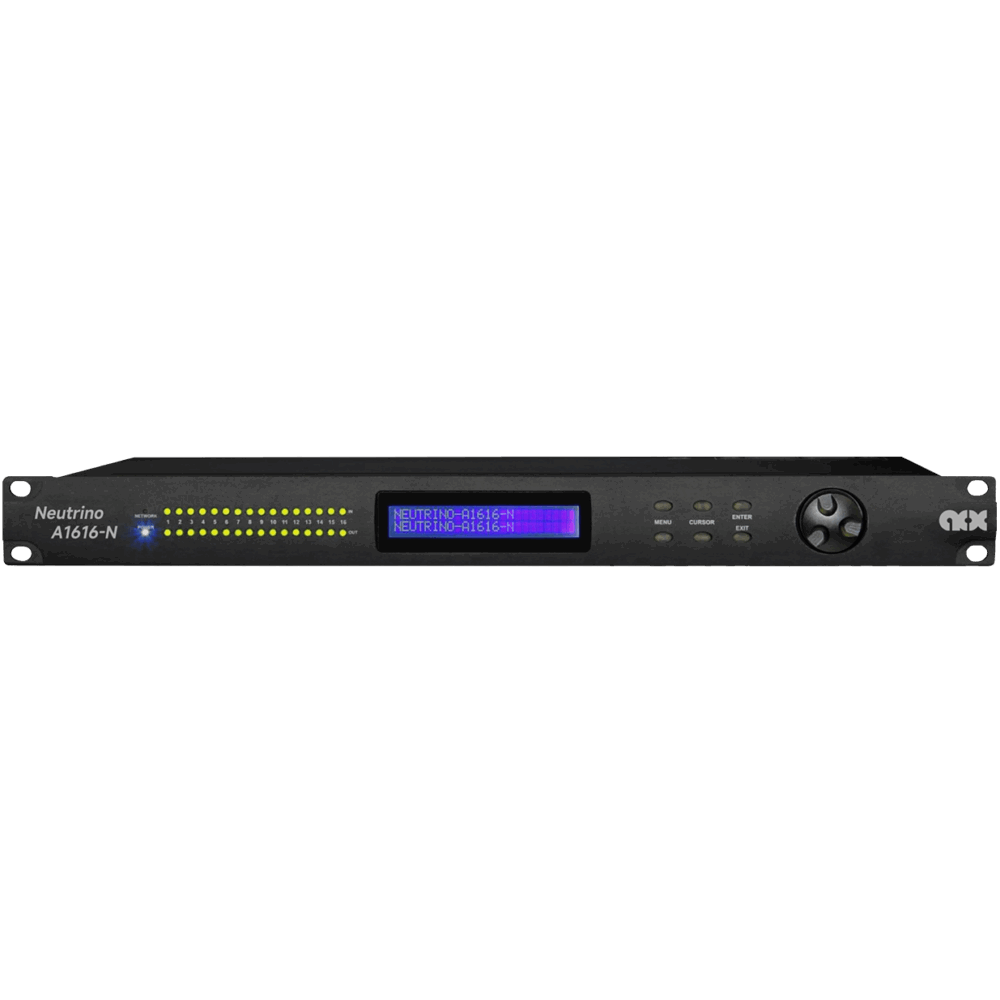

Neutrino Series

Combine top-quality audio performance, easy of use and cost-efficiency and you get an incredible product from the popular NEUX digital signl processors, comprising of DHCP-enabled units, all available in four primary I/O model sizes.

Available as in several models from the A0808, A0816, A1608, and A1616, with multiple variations including Dante, AES/EBU, AEC, and more.

Share This Items :

The Neutrino product range designed around drag-and-drop simplicity, allowing users the ability to quickly configure the precise DSP system required by any customer for any configuration.

Features a range Of I/O combinations to maximise choice and reduce unnecessary spend, including 8X8, 8X16, 16x8 and 16X6 - all with individual terminal block connections to permit rapid installation. Check the specifications for more deatils on the various I/O combinations that include options for Dante, AEC, AES/EBU, etc...

AvaiIabIe factory- installed option cards include bi-directional Dante networking, AES/EBU digital audio via a DB25 connector, and eight channels of low-latency AEC.

NEUX products can be controlled and programmed over Ethernet using the ACX Console software, which allows universal programming for third party devices.

NEUX connects to a wide range of control interfaces, including: Windows PC via ACX Console, and Android via ACX Touch. iOS support is coming soon. NEUX products can also be controlled using third-party control systems such as Crestron and AMX.

Input impedance	>10kΩ
Output impedance	50Ω
Maximum level	+20dBu
Mic/Line	Mic(+40dB gain)/Line(0dB)
Type	Electronically balanced w/ 48VPhantom power
Frequency response	+/-0.15dB (20 to 20kHz)
Dynamic range	110dB typ (unweighted)
CMRR	>50dB @ 1kHz
Crosstalk	<-110dB @ 1kHz
Distortion	0.002%(1kHz @ +4dBu)
Processor	40-bit Floating point
Sampling rate	48kHz
Analog converters	High-performance 24-bit
Propagation delay	3ms(AEC: 11ms)
Connectors	Phoenix Plug-in 3.5mm(included),RJ45Ethernet, lEC power socket(For Dante models only), DB-25 (AES/EBU for digital l/O models only)
Power	90-240 VAC(50-60Hz)
Dimensions	19“x1.75“x9"(483x44x229mm)
Rack mount	1RU, with vent between units
Weight	11lbs/ 5kg
Warranty	2 years parts and labor

Input impedance	>10kΩ
Output impedance	50Ω
Maximum level	+20dBu
Mic/Line	Mic(+40dB gain)/Line(0dB)
Type	Electronically balanced w/ 48VPhantom power
Frequency response	+/-0.15dB (20 to 20kHz)
Dynamic range	110dB typ (unweighted)
CMRR	>50dB @ 1kHz
Crosstalk	<-110dB @ 1kHz
Distortion	0.002%(1kHz @ +4dBu)
Processor	40-bit Floating point
Sampling rate	48kHz
Analog converters	High-performance 24-bit
Propagation delay	3ms(AEC: 11ms)
Connectors	Phoenix Plug-in 3.5mm(included),RJ45Ethernet, lEC power socket(For Dante models only), DB-25 (AES/EBU for digital l/O models only)
Power	90-240 VAC(50-60Hz)
Dimensions	19“x1.75“x9"(483x44x229mm)
Rack mount	1RU, with vent between units
Weight	11lbs/ 5kg
Warranty	2 years parts and labor
