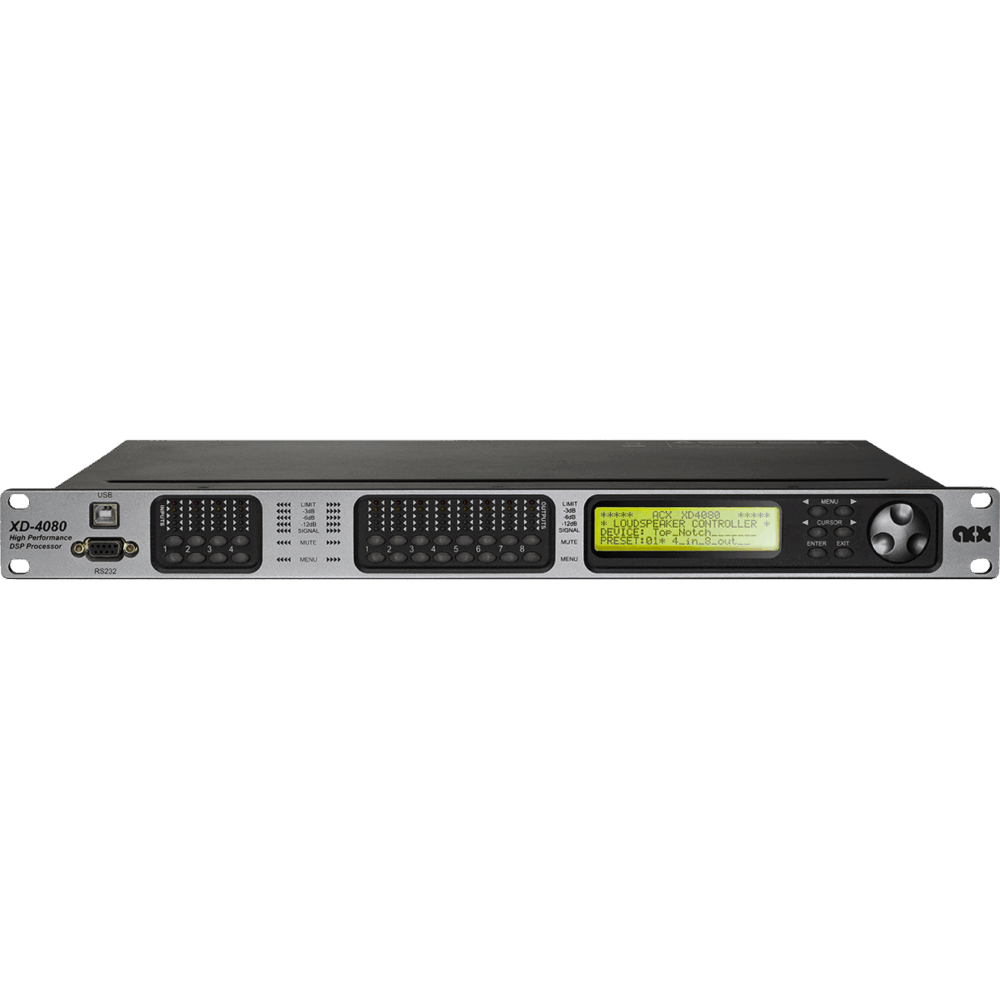

XD Series

An evolution of the famed DLP family of precessors, ACX's XD Series delivers uniquely-advanced features in a small-format, affordable footprint for the live sound and performance audio markets.
The system is available in multiple I/O Variants, with the XD4080 and XD8080 base models, or the XD4080-M and XD8080-M variants that have selectable Mic/Line Inputs & 48V with XLR I/O, and Phoenix I/O respectively.

Share This Items :

The XD Series provides an outstanding value-to-performance ratio, as the only DSPs that sample 96kHz while being a 40-bit floating point DSP, and features 24-bit converters within its price category

Features a broad range of advanced signal processing functions alongside the standard ACX suite, including high-performance FIR crossover filters, 650ms delay per input/output, phase correction, and dual IIR crossover per input/output

Comes as standard with AES/EBU digital I/O using DB-25 multi-pin connector to suit larger digital deployments

Two model sizes keep stocking and deploying simple for rental, MI and live sound providers, whilst also giving optimal cost-savings by minimising unneeded channel counts

Wide range of control options allow for ultimate in user flexibility: optional Android and iOS app alongside the use of low-cost, wall-mounted XWP and Mini series

	Model	Base Model w/selectable Mic/Line &48V
4x8 I/O	XD-4080	XD-4080M
8x8 I/O	XD-8080	XD-8080M

Input impedance	>10kΩ
Output impedance	50Ω
Maximum level	+20dBu
Mic/Line	Mic (+40dB Fixed gain)/Line (0dB)
Type	Electronically balanced
Frequency response	+/-0.1dB (20 to 30kHz)
Dynamic range	115dB typ (unweighted)
CMRR	>60dB @ 1kHz
Crosstalk	<-80dB @ 1kHz
Distortion	0.002% (1kHz @ +4dBu)
Processor	40-bit Floating point
Sampling rate	96kHz
Analog converters	High-performance 24-bit
Propagation delay	1.5ms
Connectors	XD 4080: XLR, DB-25, USB,RS232RJ45 Ethernet, lEC power socketXD8080: Phoenix connector (included)DB-25,USB,RS232,RJ45 Ethernet, lECpower socket
Power	90-240 VAC(50-60Hz)
Dimensions	19“x1.75"x9"(483x44x229mm)
Rack mount	1RU, with vent between units
Weight	11lbs/ 5kg
Warranty	2years parts and labor

Input impedance	>10kΩ
Output impedance	50Ω
Maximum level	+20dBu
Mic/Line	Mic (+40dB Fixed gain)/Line (0dB)
Type	Electronically balanced
Frequency response	+/-0.1dB (20 to 30kHz)
Dynamic range	115dB typ (unweighted)
CMRR	>60dB @ 1kHz
Crosstalk	<-80dB @ 1kHz
Distortion	0.002% (1kHz @ +4dBu)
Processor	40-bit Floating point
Sampling rate	96kHz
Analog converters	High-performance 24-bit
Propagation delay	1.5ms
Connectors	XD 4080: XLR, DB-25, USB,RS232RJ45 Ethernet, lEC power socketXD8080: Phoenix connector (included)DB-25,USB,RS232,RJ45 Ethernet, lECpower socket
Power	90-240 VAC(50-60Hz)
Dimensions	19“x1.75"x9"(483x44x229mm)
Rack mount	1RU, with vent between units
Weight	11lbs/ 5kg
Warranty	2years parts and labor
