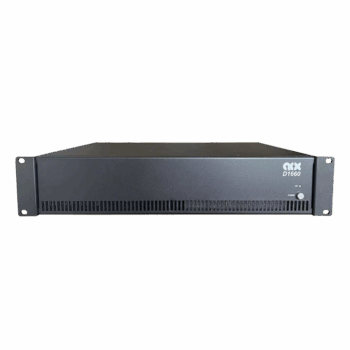

D-Series

Multi-zone amplifiers do not get simpler to install than with the D-Series.

Rocking multiple channel solutions from 8 to 16 channels, these are interacted with using the Phoenix interface, allowing for easy installation and modification, and the perfect solution for multi-zone audio.

Available as the D8120, and the D1660.

Share This Items :

The D series of professional amplifiers offers multiple channels, each with simple installation and a perfect solution for multi-zones.

The D8120 is professional amplifier holding 8-channels Class D switching power supply, impedance of 4 Ohm, power in 120w and 60w.

TheD1660 is a 16-channel amplifier, power of 60w 4 Ohm impedance. Practically speaking, they are simple and easy to install, and can offer a perfect solution for multi-zone.

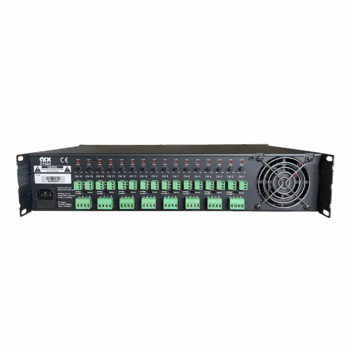

All input and output ports use the Phoenix interface to balance the input signal. Each channel has an independent volume knob and a switch which can select stereo / bridge to avoid signal interference when assigning input signals. Both also come with a built-in secure system, when the protection light glows, the device enters protection mode to preventing short circuiting overheating, overload and limiting the signal output.

Available as the 8 analog in 8 speaker out D8120, and the 16 analog and 16 speaker out D1660.

MODEL	D8120	D1660
Number of Channels	8 analog In 8 speaker Out	16 analog In 16 speaker Out
Input Port	Phoenix	Phoenix
Output Port	Phoenix	Phoenix
Output power(1%THD+N,1kHz @42	120Wx8	60Wx16
Output power(1%THD+N,1kHz @8Q	60Wx8	30Wx16
Total system efficiency (2x250W @82	88%	88%
Peak Output Current	9.2A	9.2A
THD+N (1kHz @1W)	0.1%	0.1%
Dynamic range	110dB(A)	110dB(A)
dle Noise	100μV(A	100μV(A)
Output impedance(1kHz)	200mΩ	200mΩ
Main input voltage	90VAC-240VAC	90VAC-240VAC
Power Supply	IEC	IEC
Standby consumption	/	/
Dimension	483x325x88mm	483x325x88mm
Weight	8.5kg	8.6kg

MODEL	D8120	D1660
Number of Channels	8 analog In 8 speaker Out	16 analog In 16 speaker Out
Input Port	Phoenix	Phoenix
Output Port	Phoenix	Phoenix
Output power(1%THD+N,1kHz @42	120Wx8	60Wx16
Output power(1%THD+N,1kHz @8Q	60Wx8	30Wx16
Total system efficiency (2x250W @82	88%	88%
Peak Output Current	9.2A	9.2A
THD+N (1kHz @1W)	0.1%	0.1%
Dynamic range	110dB(A)	110dB(A)
dle Noise	100μV(A	100μV(A)
Output impedance(1kHz)	200mΩ	200mΩ
Main input voltage	90VAC-240VAC	90VAC-240VAC
Power Supply	IEC	IEC
Standby consumption	/	/
Dimension	483x325x88mm	483x325x88mm
Weight	8.5kg	8.6kg
