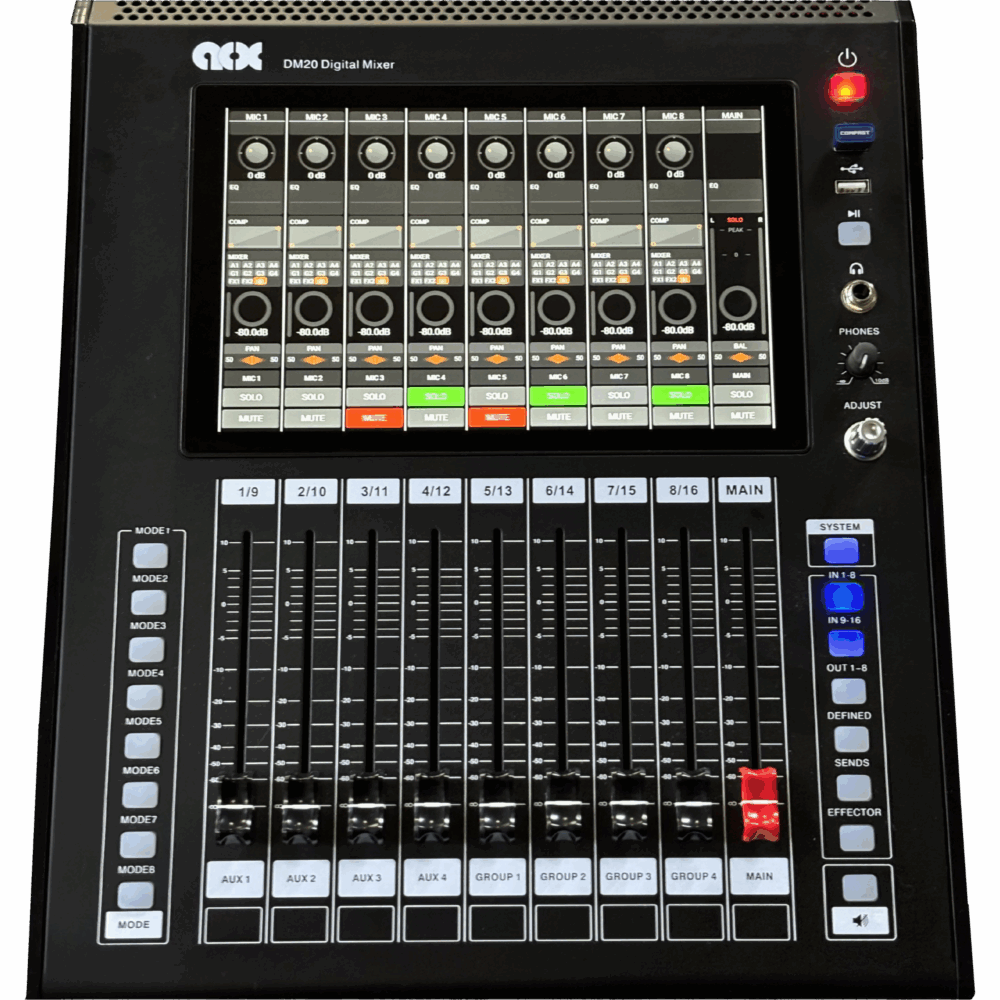

DM20

The DM20 marks ACX’s entry into the world of digital mixers. Featuring a 20 signal in and 12 signal out input including microphone, stereo USB, sound cards, effectors, and more. What pushes this device further into the realm of accessibility is its compatibility with Bluetooth, Dante, AES, and the ability to control this device through the web, our line of ACX software, or even with 3rd party software.
With its host of features, customization options, convenience features and state-of-the-art hardware, the DM20 can fit the needs of audio engineers in virtually any application.

Share This Items :

10.1-Inch 1280 x 800 touch screen with multiple contrast settings for any environment.
20 signal inputs with 16 voice playback .
Analog inputs & 12 signal outputs with 8 .
Analog outputs for to cover a variety of uses.
Several built-in signal processing functions such as Noise gate, equalizer, Gain, and more for the purest sound.
Provides variety of eﬀects and up to 50 scenes for easy switching, and management for multiple scenarios .
Supports multiple expansion methods such as Bluetooth, Dante, and AES, and is compatible with several audio formats
Web-controllable with browsers with the device’s IP address.
Interfaces with 3rd party software or ACXconsole/ACXTouch for customization and control.
High Precision Gauges for maximum accuracy in quality and volume.
Supports English and Chinese out of the gate with more languages available optionally.

Channel Processing
Input Processing Channels	16 microphone or line inputs, 1 stereo USB playback, 1 stereo USB soundcard
Output Processing Channels	4x AUX channels, 4xGROUP channels, 1xMAlN channel, 1 xstereo monitor
	and the option to choosebetween 1 group stereo USB recording and USB soundcard
Internal Effects	2x Effectors,which are mono effects and echo,reverb
GEQ Module	2x 31-band GEQmodules, for any output channels
Noise Gate	Threshold:-120dB to -20dB
Compressor	Threshold:-48dB to 0dB
	Attack time:3ms to 100ms
	Release time: 2x, 4x, 6x, 8x, 16x, 32x (release time is a coefficient multiplied by the attack time) Compression ratio: 1.1 to 128:1
Equalizer	4 bands
	Frequency:20Hzto20kHz(-20dB/+12dB)
	Q value :0.404 to 28.852
	Parametric
HPF/LPF	High-pass:20Hz to 20kHz
HPF/LPF	low-pass: 20Hz to 20kHz
Delay	0~200ms
Phase	Standard/lnverted
Scene Files	Up to 50 scenes can be saved
Effect Library Files	Up to 100 effect presets can be saved
Signal Processing Capability	40-bit floating-point processing, 48kHz sample rate
A/D Converter	32-bit, 168kHz, 115dB dynamic range
D/A Converter	24-bit, 192kHz, 123dB dynamic range
Connectors
Microphone/Line Input XLRInterface	16 microphone or line inputs
XLR Output Interface	8
Optical Fiber Interface	1.OUT7&8 RPM digital signal output
Headphone Output TRS.Interface	1, stereo
USB Interface (Rear Panel)	1, 2X2 soundcard
USB Interface (Front Panel)	for connecting USB flash drives for stereo recording/playback, connecting WiFi module forwireless control
Serial Port	RS232 DB9 serial port, fixed baud rate 115200bps
Network Interface	Interface RJ-45., format lEEE802.3, IeVel 10BASE-T/100BASE-TX, socket NETWORK
IN1-16 Inputs
Input lmpedance	Unbalanced 5kΩ, balanced 3kΩ
Frequency Response	20Hz to 20kHz (+/-1dB)
Maximum input Level	18dBu
Phantom Power	+48V (IN1 to IN16)
Gain	-12dB~40dB
S/N	110dB (gain =0dB, A-weighted)
Dynamic Range	112dB (gain =0dB, A-weighted)
OUT1-8Outputs
THD	0.005%(gain = 0dB,output = 0dBu, unweighted)
THD	0.005%(gain=40dB,output=+20dBu, unweighted)
Frequency Response	20Hz-20kHz(+/-1dB)
Maximum Output Level	+20 dBu
Output lmpedance	<100Ω
Crosstalk	-105dB@1kHz
Noise Floor	-86dBu (gain =0dB)
Monitor andHeadphone
Output lmpedance	<50Ω
Maximum Output Level	+20 dBu
Noise Floor	-81dB (potentiometer=MAX, volume=0dB)

I/O	2 in 2 out soundcard,UsB 2.0, support WIN7 and above system Pc online
	USB stereo playback and recording, support mp3,
	wav and flac file playback, recording storagewav file format
Overall
Maximum Gain	70dB from analog input to output
Display Screen	10.1 "touchscreen 1280x800 resolution
Linear Potentiometers	9X 100mm electric linear potentiometers
System	Android
Network	Wired network port, external WiFi module, support software control
Hardware
Power	Power adapter,AC 100-240V 50/60Hz input, DC 24V 2.5A output
Power Dissipation	50W
Work Temperature	5℃~40℃

Dimensions（DxWxH）	Machine: 346x442.66x104.42mm
Dimensions（DxWxH）	Package 595x445x215mm

Weight	Net Weight: 5.5kg
Weight	Gross Weight: 7.5kg

Accessories	WiFi Module
Accessories	PowerAdapter
